The QS Piezostimulator is a mechanical tactile stimulator, specified for use in functional imaging experiments like MEG, fMRI or EEG. The stimulation is realized by using several different pin matrices (2x4, 4x4, 2x5, 4x5, etc.). Each of the pins can be driven out to 4096 different heights between 0 and 1.5 mm with a timing accuracy of 0.5 ms.

There are separate ports for input and output of trigger signals, enabling a precise synchronization between stimulation and measurement. For more complex experiments, it is even possible to upgrade the system.

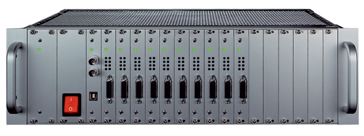

Piezostimulator with 10 stimulation cards

pdfTechnical Data
